Continuous and Automatic Riveting and Welding Technology
Traditional riveting involves inserting rivets through pre-drilled holes in the components to be joined, thereby connecting two or more components into an inseparable assembly, known as a riveted joint. Welding, also referred to as fusion joining, is a manufacturing process and technology that joins metals or other thermoplastic materials, such as plastics, through heating, high temperature, or high pressure.

Leveraging its design and manufacturing capabilities, Chuangzhe Company provides comprehensive solutions for the automatic production of riveting, welding, or a combination of both. By designing specialized molds (transport fixtures), automatic riveting devices, and conveying systems, and selecting appropriate welding methods, the company achieves unmanned production for riveting and welding processes.

Success Cases

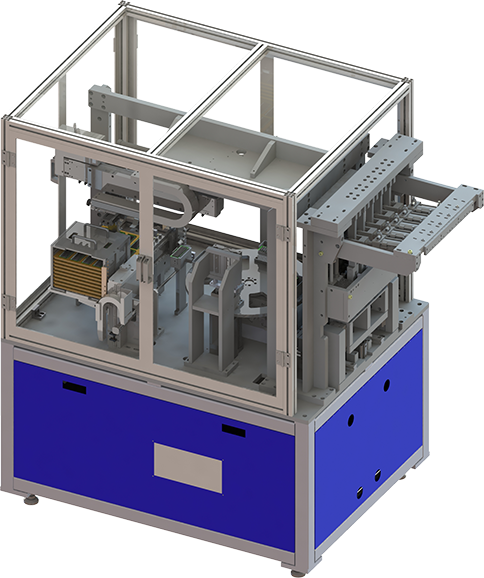

Automatic Riveting and Welding Device for Bimetallic Wires (Core Wires) and Chips
Equipment structure01
The device comprises a frame, a riveting mechanism, and a welding mechanism.
The riveting mechanism includes an elevating riveting terminal and a riveting seat.
The welding mechanism includes an elevating drive component that actuates the riveting terminal to achieve riveting between the chip assembly and the core wire.
Working principle02
When the core wire in the mobile fixture is transported to the riveting station and positioned, the riveting seat precisely places the chip. The riveting terminal then presses downward, pressing the core wire into a concave-shaped rivet piece to complete the wrapping. Subsequently, the fixture carries the chip to the welding station, where the supporting plate rises, and the welding head presses downward to perform soldering on the riveted position, completing the welding process.
Main technical parameters03
  • Quantity per riveting/welding cycle

    Customizable
  • Production capacity

    Soldering: 2-3 seconds per solder joint; Laser welding: 0.2 seconds per solder joint.
  • Welding Methods

    Soldering/ Laser welding
